FIREROL Medium Wall Single Core Screened & Sheathed Cables 1.8/3 kV or 3.6/6 kV

EN 50264-3-1 (FRL-MW-3S-OS/FRL-MW-6S-OS)

EN 50264 Medium Wall Power & Control Cable

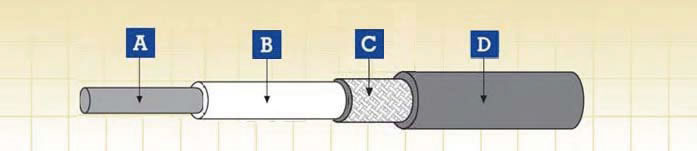

A. Conductor B. Insulation C. Screen D. Sheath

Used as power and control cable for protected installations inside and outside of rail and transport vehicles,

where handling and installation cost are an important factor.

Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels,

driver desks etc.

Conductor

Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5

Insulation

LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 109)

Overal screen

Tinned annealed copper wires

Sheath

LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

Nominal Voltage:1.8/3 kV or 3.6/6 kV

Maximum Conductor Temperature:+90 deg (fixed installation)

Minimum Permissible Ambient Temperature:-25/-40 deg (fixed installation)

Bending Radius:Fixed installation:5 x Overall Diameter (D<12mm);

　　　　　　　　　　　　　　　　　　6 x Overall Diameter (D>12mm)

　　　　　　　　Flexible installation:10 x Overall Diameter (D<12mm);

　　　　　　　　　　　　　　　　　　　12 x Overall Diameter (D>12mm)

EN 60684-2:No fluorine

EN 50305; EN 60811-2-1:Resistance to mineral oil & fuel oil, acid & alkali

EN 50305:Resistance to ozone

EN 50306-2:Hazard levels HL1, HL2/HL3

DIN 5510-2:Protection level 1/2/3/4

BS 6853:Interior use 1a, 1b, II; Exterior use 1a, 1b, II

NF F 16-101:F0

EN54454-2：R15 Interior/ R16 Exterior HL1, HL2, HL3

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853	Low Toxicity
NFF 16101; NFF 63808; BS6853	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16

Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Screen Wire Diameter	Min. Mean Thickness of Sheath	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Screen Wire Diameter	Min. Mean Thickness of Sheath	Min.	Max.	Weight	20°C	20°C	90°C
mm²	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
1.5	1.5	1.3	0.16	0.8	6.6	7.6	103	13.7	21.8	0.218
2.5	1.95	1.3	0.16	0.8	6.9	8.1	123	8.21	18.8	0.188
4	2.5	1.3	0.21	0.8	7.5	8.8	157	5.09	16.2	0.162
6	3.0	1.3	0.21	0.8	7.9	9.4	189	3.39	14.4	0.144
10	3.9	1.5	0.21	0.8	9.1	10.8	264	1.95	12.8	0.128
16	5.0	1.5	0.26	0.8	10.2	12.0	359	1.24	10.7	0.107
25	6.4	1.8	0.26	1.0	12.1	14.2	510	0.795	10.3	0.103
35	7.7	1.8	0.31	1.0	13.3	15.2	650	0.565	8.9	0.089
50	9.2	1.8	0.31	1.0	14.7	16.8	846	0.393	7.8	0.078
70	11.0	1.8	0.31	1.0	16.6	19.3	1130	0.277	6.7	0.067
95	12.5	2.2	0.31	1.0	18.7	21.1	1436	0.210	6.5	0.065
120	14.2	2.2	0.31	1.0	20.6	23.0	1765	0.164	6.1	0.061
150	15.8	2.2	0.31	1.2	22.0	25.3	2128	0.132	5.8	0.058
185	17.5	2.4	0.31	1.2	24.0	29.0	2541	0.108	5.6	0.056
240	20.1	2.4	0.31	1.2	26.8	30.5	3244	0.0817	5.0	0.050
300	22.5	2.4	0.31	1.2	29.2	33.0	3934	0.0654	4.5	0.045
400	25.8	2.6	0.31	1.4	32.9	38.0	5078	0.0495	4.4	0.044

FRL-MW-6S-OS 3.6/6 kV

Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Screen Wire Diameter	Min. Mean Thickness of Sheath	Overall Diameter		Weight	Conductor Resistance	Insulation Resistance
Nominal Cross-Sectional Area	Conductor Diameter (a)	Min. Mean Thickness of Insulation	Min. Screen Wire Diameter	Min. Mean Thickness of Sheath	Min.	Max.	Weight	20°C	20°C	90°C
mm²	mm	mm	mm	mm	mm	mm	kg/km	Ω/km	MΩ x km	MΩ x km
2.5	1.95	2.6	0.16	0.8	9.6	10.7	120	8.21	24.6	0.246
4	2.5	2.6	0.21	0.8	10.1	11.3	140	5.09	21.6	0.216
6	3.0	2.6	0.21	0.8	10.6	12.0	165	3.39	19.5	0.195
10	3.9	2.6	0.21	0.8	11.5	13.0	220	1.95	16.7	0.167
16	5.0	2.6	0.26	0.8	12.6	14.0	290	1.24	14.2	0.142
25	6.4	2.9	0.26	1.0	14.4	16.4	430	0.795	13.1	0.131
35	7.7	2.9	0.31	1.0	15.6	18.1	540	0.565	11.6	0.116
50	9.2	2.9	0.31	1.0	17.2	19.7	670	0.393	10.2	0.102
70	11.0	2.9	0.31	1.0	18.9	21.7	880	0.277	8.9	0.089
95	12.5	2.9	0.31	1.0	20.5	23.4	1100	0.210	8.0	0.080
120	14.2	2.9	0.31	1.2	22.1	25.7	1380	0.164	7.5	0.075
150	15.8	2.9	0.31	1.2	23.8	27.4	1660	0.132	6.9	0.069
185	17.5	3.2	0.31	1.2	26.0	30.0	2010	0.108	6.7	0.067
240	20.1	3.4	0.31	1.4	29.0	33.7	2670	0.0817	6.4	0.064
300	22.5	3.4	0.31	1.4	31.4	36.4	3170	0.0654	5.9	0.059
400	25.8	3.4	0.31	1.4	34.8	40.0	4150	0.0495	5.2	0.052

(a)= For information,indicative only
